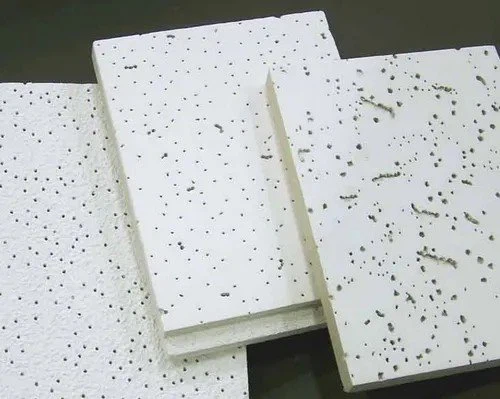

Acoustic Mineral Fiber Board

Xa kev nug

Kev xa khoom sai
Quality Assurance
24/7 Kev Pabcuam Cov Neeg Siv Khoom

Khoom Taw qhia

Product Description

Acoustic ntxhia fiber board, tseem hu ua ntxhia hniav qab nthab vuas, uas yog ib yam tshiab ntawm ib puag ncig tus phooj ywg cov ntaub ntawv. feem ntau yog ua los ntawm cov ntoo zoo granulated thiab lwm yam additives ua cov khoom tseem ceeb. Nto tuaj yeem coated nrog ntau hom coated pulp (feem ntau dawb). Mineral fiber ntau qab nthab vuas yog qhov kev lag luam zoo tshaj plaws hauv qab nthab board siv nyob rau hauv lub qab nthab qhov system, lub qab nthab board tau tsim los muab cov yam ntxwv ntawm qhov zoo tshaj plaws, tsis muaj suab nrov, hluav taws kub tsis kam, thermal rwb thaiv tsev, zoo suab nqus thiab lub teeb zoo heev. reflectance, muab kev nplij siab ntau dua thiab txaus siab ib puag ncig rau kev lag luam, kev lag luam thiab tsev neeg lub tsev.

Lub ntsiab yam ntxwv

1. Lub rooj tsavxwm zoo nkauj zoo nkauj, cov qauv zoo nkauj zoo nkauj muab qhov chaw yooj yim dua.

2. Tseem tuaj yeem nqus tau, decompose cov tshuaj lom.Pwm tsis kam, tsis muaj formaldehyde.

3. Ib qho yooj yim installation, cov ntaub ntawv qab nthab niaj hnub hauv tsev.

4. Kev ua haujlwm zoo thiab Class A hluav taws ntsuas kev ua tau zoo..

5. ACOUSTIC ntxhia fiber ntau qab nthab tuaj yeem txo cov suab nrov sab hauv tsev thiab txhim kho acoustical zoo.

6. Cov khoom siv thermal insulating zoo heev.

7. Cov hluav taws kub zoo thiab lub suab nqus tau zoo, thiab muaj kev ua tau zoo tshaj plaws xws li tsis muaj hluav taws xob, rwb thaiv tsev kub, sag resistant, pwm-pov thawj, kev tiv thaiv ib puag ncig.

siv qhov twg

Acoustic mineral fiber board yog siv rau hauv tsev kawm ntawv, chav studio, chaw txais tos, qhuab qhia ua yeeb yam, chaw ua haujlwm, tsev kho mob, kev ua si nawv thiab chaw ua si, kev cob qhia thiab kev lag luam hauv tsev thiab lwm yam.

Specification

Khoom npe

Hom

Thickness

qhov loj

Acoustic ntxhia fiber board

Tsis muaj qhov pores li niaj zaus (Fine Fissured), Micropores (Random Holes), Sand Blasted, thiab Perforation.

Square edged; Beveled ntug; Tegular edged; Ncua edged

12mm, 13mm, 14mm, 15mm, 19mm, 25mm

603 * 603mm; 595 * 595mm; ob lub imperial thiab metric daim phiaj muaj

Tsim

image003(001)

Technical Data

Yam khoom	Chav tsev	Txheem tus nqi	Test tus nqi
Khoom siv	/	/	Wet-Formed Mineral Fiber
Nto tiav	/	/	Factory-Applied Vinyl Latex Xim
Qhov ntom	Kg / m3	Tsawg dua los yog sib npaug li 500	280-320
Cov ntsiab lus dej	feem pua	Tsawg dua los yog sib npaug 3	1
Moisture Deflection	Mm	Tsawg dua lossis sib npaug li 3.5	2.8 ~ 0.8 (thickness 12-18 hli)
Thermal conductivity	W/m·k	Tsawg dua lossis sib npaug rau 0.065	0.0475
Noise Reduction Coefficient (NRC)	/	/	0.48-0.66
Flexural zog	N	Ntau tshaj los yog sib npaug rau 50	196
Ceiling Articulation Class (CAC)	dB	/	Yam tsawg kawg 30
Lub teeb Reflectance	/	/	LR yam tsawg kawg nkaus 0.80
Incombustibility	Chav kawm	GB6566-2001 Chav A	GB6566-2001 Chav A
RH Performance	Kwv yees li 80 feem pua -90 feem pua
